Place of Origin: | CHINA |
Brand Name: | DINGCHU |
Certification: | CE、ISO |
Model Number: | DCGZDH |
Minimum Order Quantity: | 1 |
---|---|
Delivery Time: | 7 work days |
Payment Terms: | L/C, T/T, Western Union |
Name: | Double Head Steamer | Material: | 304#stainless Steel |
---|---|---|---|
Usage: | Commercial Kitchen | Size: | 1500*1050*(810+440)mm |
Function: | Steam | Warranty: | One Year |
Head: | Double | Energy: | Gas |
High Light: | 2800Pa Chinese Wok Restaurant Equipment,260kg Chinese Wok Restaurant Equipment,2800Pa Double Head Restaurant Equipment |

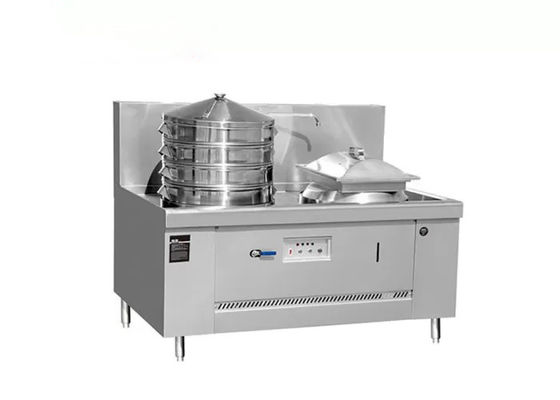

Ring Shaped Traditional Chinese Cooking Equipment , Double Head Chinese Wok Restaurant Equipment
Specification:
Gas steamer constructed of stainless steel was divided into two parts:The upper part is for steaming food,
there is a ring shaped stainless steel stand,according to different requirements, different steam containers
can be used suchas Ø550 steam‐tray/rice‐roll pan/plate with holes for dim sum; the lower part is for generating
steam, constituted by stainless steel water boiler, auto‐fill water tank, water drainage, automatic ignition and combustion system;
The stainless steel water boiler is built in some S‐shaped combustion chamber, and each combustion chamber
is configured with one self air‐sucking burner, water inlet for tank is ф1/2 "(DN15), and drain for boiler withф1‐1/2" (DN40);
Combustion System: Twin Solenoid electromagnetic value with pressure regulator,
when the pilot does not ignite, the main gas‐valve does not open and avoid a lot of gas
leakage, ensure safety and flame stability; Easy operation by one‐button burner switch
together with automatic impulse ignitor; Equipped with thermoelectric couple flameout
protection, action sensitive, safe and reliable;
Name: | Double Head Steamer | Material: | 304#stainless Steel |
---|---|---|---|
Usage: | Commercial Kitchen | Size: | 1500*1050*(810+440)mm |
Function: | Steam | Warranty: | One Year |
Head: | Double | Energy: | Gas |
High Light: |
chinese food kitchen equipment,chinese kitchen stove |
Model no | Item | Size | Fuel pipe | Water inlet | Water outlet | Thermal | Pressure(Pa) | N.W | G.W |
KG | kg | ||||||||
BY-P-S-2 | Double head steamer | 1500*1050*(810+440)mm | DN20/DN25 | DN15 | DN40 | 51(174000) |
NG:2000 LPG:2800 |
260 | 290 |
Commercial Chinese Stainless Steel Double Head Gas Steamer Cooking Equipment For Kitchen
